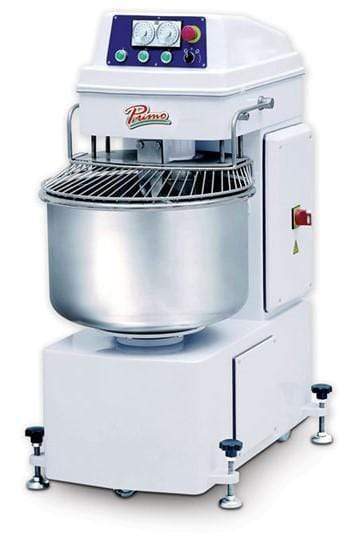

Primo PSM – Spiral Mixer
Price range: $8,844.00 through $21,478.00
Description
The Primo PSM spiral mixers are tough and durable dough mixers. Each model will have a safety guard, dough hook, kneading bar, and bowl – all made of stainless steel. They can knead both small and large quantities of dough perfectly. Check out the capacity chart.
These mixers can run in three different modes: manual mode, where the timers are disabled; semi-automatic mode, where the mixer will operate in either 1st or 2nd speed; or finally, automatic mode, where the machine automatically switches from 1st to 2nd speed and stops once the set time has elapsed.
- The direction of bowl rotation can be reversed to facilitate dough removal.
- Front and rear casters allow for easy movement
- Standard components: telemecanique, Italian timer
- Length of power cord is 8.5 ft
- Safety guard, dough hook, kneading bar, and bowl are made of stainless steel.
- 208 volts, 60 hertz, 3 phase
- ETL listed
CAPACITIES
| Model | Flour | Dough |
| PSM-40E | 20 kg. | 32 kg. |
| PSM-50E | 25 kg. | 40 kg. |
| PSM-60E | 37 kg | 60 kg. |
| PSM-80E | 50 kg. | 80 kg. |
| PSM-120E | 75 kg. | 120 kg. |
ELECTRICAL
| Model | 1st Speed | 2nd Speed | Bowl Motor | Amps |
| PSM-40E | 1.6 kW (2.1 HP) 110 RPM |
3.3 kW (4.4 HP) 230 RPM |
0 HP 23/11 RPM |
7.1 |
| PSM-50E | 1.5 kW (2.0 HP) 135 RPM |
3.0 kW (4.0 HP) 270 RPM |
0.55 HP 18 RPM |
6.8 |
| PSM-60E | 2.0 kW (2.7 HP) 120 RPM |
3.7 kW (5.0 HP) 240 RPM |
0.55 HP 17 RPM |
7.6 |
| PSM-80E | 2.6 kW (3.5 HP) 120 RPM |
5.2 kW (7.0 HP) 240 RPM |
0.55 HP 17 RPM |
13.9 |
| PSM-120E | 3.7 kW (5.0 HP) 100 RPM |
7.5 kW (10.0 RPM) 200 RPM |
0.75 HP 16 RPM |
15.2 |
All are 208 volts, 60 hertz, 3 phase
SIZING
| Model | Dimensions (WDH) |
| PSM-40E | 38.1″ x 40.6″ x 56″ |
| PSM-50E | 38.1″ x 40.6″ x 56″ |
| PSM-60E | 29.9″ x 49.2″ x 65.5″ |
| PSM-80E | 29.9″ x 49.2″ x 65.5″ |
| PSM-120E | 33.9″ x 54″ x 69″ |
WARRANTY
Two years parts, one year labor exclusive of wear items.
