Southbend SBF14 – Mobile Fryer Oil Filtration System

Description

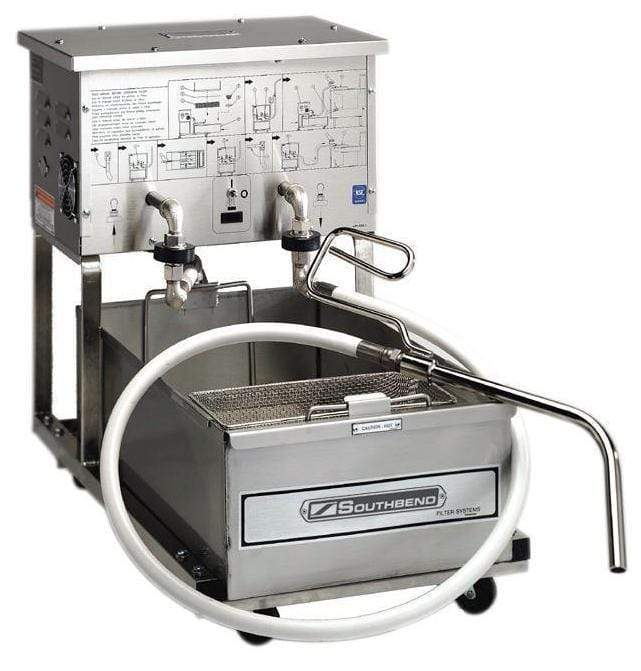

The Southbend SF14 is a portable filter system for commercial kitchens. The filter pan and the pump assembly are constructed of polished stainless steel, and all the other surfaces are nickel-plated finish. It has a welded steel frame, mounted on four ball-bearing swivel casters for easy movement.

It has a 1/3 horsepower, heavy-duty motor and pump assembly, and a 5-foot flexible, sanitary high-temperature return hose equipped with a nozzle. The return hose nozzle is nickel-plated steel with a non-heat conducting handle. It has an extra-large filter area for large fryer filtering. It’s compatible with their 35 and 45-pound fryers (SB35S and SB45S).

• Filter pan and pump assembly enclosure are constructed of polished stainless steel.
• All other surfaces are nickel-plated finish.
• Welded steel frame mounted on four ball-bearing swivel casters for easy movement.
• 1/3 HP heavy-duty motor and pump assembly.
• 5 ft (1.5 m) flexible, sanitary, high-temperature return hose equipped with nozzle
• Return hose nozzle is nickel-plated steel with a non-heat conducting handle.
• Extra-large filter area for large fryer filtering.

SPECS

Brand Southbend
Model SBF14
Compatible fryers SB35S, SB45S
Dimensions (WDH) 30″ x 17″ x 24″
Pan Capacity 55 lb

INCLUDED ACCESSORIES

• 10 Foot (3.05 meters) oil proof supply cord)
• Filter Pan
• Filter catch basket
• Sample filter paper (flat)
• Sample filter powder packets
• 1 sediment cleanout scoop
• 1 – 7 inch (17.8 cm.) drain nipple

WARRANTY

One year parts and labour warranty.

DOWNLOAD SPEC SHEET
