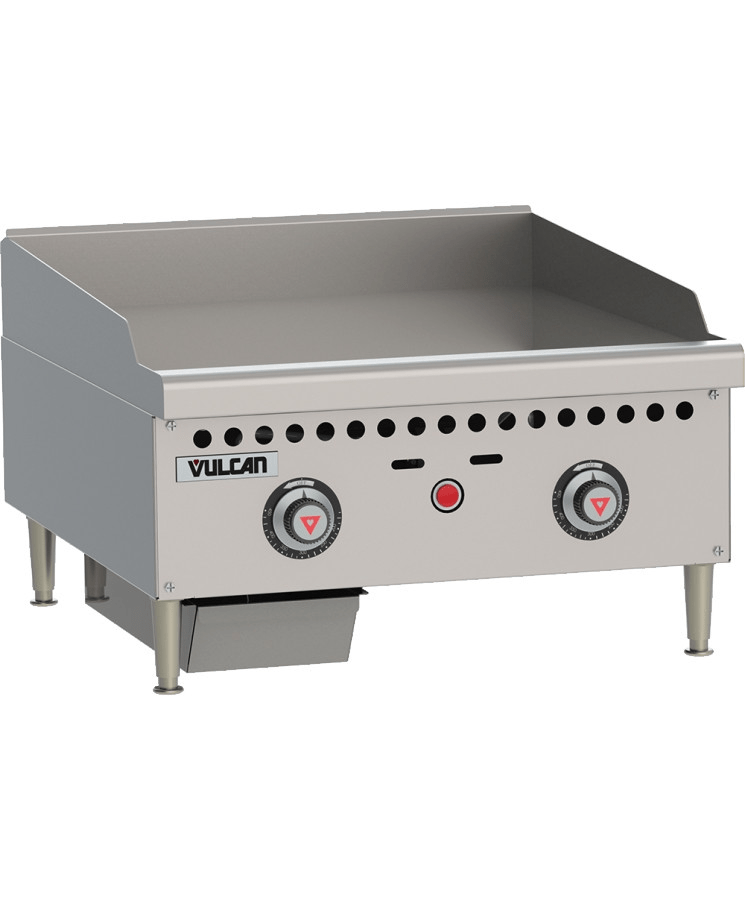

Vulcan VCRG24-T – 24″ Snap-Action Thermostatic Gas Griddle – 50,000 BTU

Description

Key Features:

• 50,000 BTU per hour
• 1″ thick polished steel griddle plate welded to 3.25″ stainless steel back, tapered side splashes and stainless steel grease trough
• Fully welded stainless and aluminized steel chassis frame
• 12.5″ cooking height on 4″ adjustable legs
• One 25,000 BTU/hour “U”-shaped aluminized steel burner for every 12″ of griddle width
• 1 embedded, mechanical snap action thermostat per burner for high performance and optimal response time
• Temperature range of 200° to 450° F
• 1 pilot safety valve for every 2 burners, safety will completely shut off gas to pilot and burners if pilot extinguishes
• High-capacity 4.5-quart capacity grease can
• 0.75″ rear gas connection and convertible gas pressure regulator for liquid propane service
• Constructed for natural gas, liquid propane conversion kit included
• 1-year parts and labor warranty

Specifications:

Brand Vulcan
Model VCRG24-T
BTU/Hour 50,000
Griddle Plate (WD) 24″ x 20.5″
Dimensions (WDH) 24″ x 27″ x 16″
Power Source Gas

Documents:

Spec Sheet
